Corrugated Pipe Production Line: Complete Turnkey Manufacturing Solutions

ITIB Machinery India Pvt. Ltd. delivers complete corrugated pipe production lines engineered for high-efficiency manufacturing of single wall and double wall corrugated pipes. With over five decades of global corrugator expertise, our turnkey production line solutions cover every stage of the manufacturing process, from raw material feeding to finished pipe coiling.
Whether you are setting up a new corrugated pipe manufacturing plant or expanding existing capacity, ITIB India provides end-to-end solutions that include plant layout design, equipment supply, installation, commissioning, and comprehensive operator training. Our production lines process PE, PP, PVC, PA, EVA, and other thermoplastic materials to produce pipes from 4.5mm I.D. to 75mm O.D.

Components of a Complete Corrugated Pipe Production Line

A corrugated pipe production line consists of several integrated systems that work in sequence to transform raw plastic resin into finished corrugated pipes. ITIB India supplies and integrates all components:

01.
Extruder Unit

The extruder is the starting point of the production line. It melts and homogenizes thermoplastic resin pellets, pushing the molten material through the die head under controlled temperature and pressure. ITIB India’s extruders are precision-engineered for consistent melt quality and output rates.

02.
Die Head

The die head shapes the molten plastic into the initial tubular or sheet profile before it enters the corrugator. Die changeovers allow quick switching between different pipe diameters, minimizing production downtime.

03.

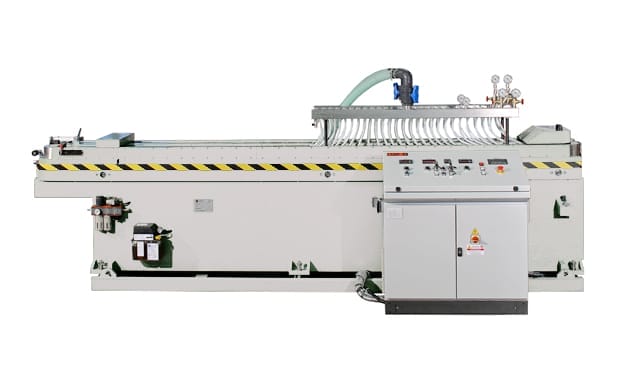

Corrugator Machine

The core of the production line, the corrugators machine forms the pipe into its corrugated profile using precision-machined mold blocks. ITIB offers both single wall corrugators (Form 15, 32, 65 series) and double wall corrugators (Form 75 series) to match specific production requirements.

04.
Cooling System

After corrugation, the pipe passes through cooling stations that solidify the thermoplastic material into its final shape. Chilled water or air cooling systems ensure dimensional stability and surface quality of the finished pipe.

05.
Haul-Off Unit

The haul-off system controls the pipe’s movement speed through the production line, maintaining consistent wall thickness and corrugation profile throughout the production run.

06.
Coiler

The coiler is the final station in the production line, winding finished corrugated pipe into coils for easy storage, transport, and deployment. ITIB India’s coilers are designed for automatic operation with precise tension control.

ITIB India’s Turnkey Project Approach

ITIB India is renowned for its turnkey project expertise. Our turnkey approach covers everything required to get your corrugated pipe production line operational:

Our engineers assess your production volume targets, pipe specifications, material requirements, and facility constraints.

Our technical team handles on-site installation, system integration, and commissioning to ensure all equipment operates at peak performance.

We design the optimal production floor layout to maximize throughput and operator efficiency.

Comprehensive hands-on training for your production staff covering machine operation, maintenance procedures, and troubleshooting.

All production line components, from extruder to coiler, are supplied by ITIB India with full warranty coverage.

Ongoing technical support, spare parts supply, and process optimization assistance to maximize your production uptime.

Industries Served by ITIB Corrugated Pipe Production Lines

ITIB India’s corrugated pipe production lines serve manufacturers catering to multiple sectors. Key industries include:

  • Construction and Infrastructure: Underground drainage, stormwater pipes, sewage systems
  • Telecommunications: Telecom ducts for fibre optic cable protection
  • Automotive: Harness pipes for wire protection meeting international specifications
  • Electrical: Electrical conduits for residential and industrial wiring
  • Medical: Medical tubes requiring precision tolerances
  • Home Appliances: Washing machine pipes and flexible hose connections

Frequently Asked Questions

A complete production line from ITIB India includes the extruder, die head, corrugators machine, cooling system, haul-off unit, and coiler. All components are integrated and optimized for your specific pipe specifications and production volume.

Yes. ITIB India specializes in turnkey project solutions. Our team handles plant layout design, equipment supply, installation, commissioning, and operator training. We have successfully delivered turnkey corrugated pipe plants across India and internationally.

Depending on the corrugator model selected, ITIB production lines can produce single wall pipes from 4.5mm I.D. to 65mm O.D. and double wall pipes from 40mm to 75mm O.D.

Setup timelines vary based on facility readiness and line complexity. Contact our team for a detailed project timeline based on your specific requirements.

Request a Corrugated Pipe Production Line Consultation

Ready to establish or expand your corrugated pipe manufacturing capability? ITIB India’s engineering team will work with you to design the optimal production line for your business requirements.
